    M 2310N

    M 2310N

    The M 2310N provides A3 printing, copying, and scanning with built-in Ethernet network connectivity in a compact design.

    Ideal for shared workgroup environments, it ensures smooth document processing with a 23 ppm speed, convenient Scan to USB, Mobile, and Folder modes, duplex as standard, and an intuitive 4-line LCD panel. A Typical Electricity Consumption (TEC) value of just 0.35 kWh and 0.94 W energy usage in Sleep Mode help maintain a minimal environmental footprint. The standard 350-sheet input capacity (standard + bypass tray) can be expanded to 600 sheets via an optional paper feed unit to minimise paper refills.

    A cost-effective networked solution, the M 2310N can be configured with either a platen cover or Automatic Reversing Document Feeder (ARDF) for added flexibility.

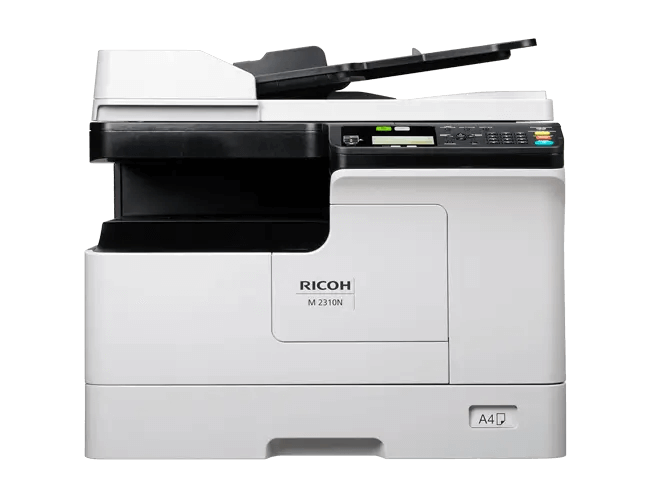

    Note: The image in the Device Configurator displays the mainframe with the ARDF and standard tray only and does not reflect any additional options selected during configuration.

    Platen Cover PN2020

    A cover for the platen glass. No automated feeding to scan and copy documents.

    Physical dimensions (W x D x H): 566 x 432 x 32 mm
    Weight: 1.4 kg


    Notes:
    Cannot be installed with ARDF DF2040
    ARDF DF2040
    Automatic Reversing Document Feeder. Feeds originals one page at a time into a scanner or copier without users having to manually replace each page.

    Capacity: 50 sheets—80 g/m2 paper, less than 9.5 mm
    Dimensions (W x D x H): 570 x 445 x 88 mm
    Weight: 4.5 kg
    Power consumption: 40 W or less
    Notes:
    Cannot be installed with Platen Cover PN2020
    Paper Feed Unit PB2080

    Optional 1-tray paper feed unit that increases the paper capacity of the device.

    Capacity: 250 sheets
    Paper size: A5R–A3
    Paper weight: 64–80 g/m2
    Dimensions (W x D x H): 575 x 565 x 117.3 mm
    Weight: 5.5 kg
    Power consumption: 0.92 W



    Standard inclusions

    • 250-sheet standard input tray
    • 100-sheet bypass tray
    • 100-sheet output tray
    • 512 MB RAM
    • 4-line LCD panel
    • Ethernet network connectivity

    Current configuration

    M 2310N
    575 mm x565 mm x402 mm (W x D x H)
    24.4 kg
    Selected Options:
      M 2310N
